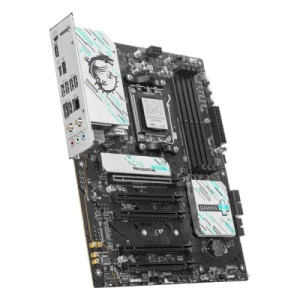

MSI B840 GAMING PLUS WIFI AMD AM5 ATX Motherboard
Key Features
- Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
- Supported RAM: 4x DDR5, Dual Channel DDR5 8000+ MT/s (OC), Max 256GB
- Graphics Output: 1x HDMI 2.1, maximum resolution of 4K 60Hz
- Features: 2x M.2 Slot, Realtek 8125BG 2.5G LAN, Wi-Fi 7
24,500 ৳
Description
MSI B840 GAMING PLUS WIFI AMD AM5 ATX Motherboard
The MSI B840 Gaming Plus WiFi Motherboard is designed for AMD Ryzen 9000, 8000, and 7000 Series processors, making it ideal for multitasking and gaming with its support for DDR5 memory in dual-channel mode and overclocking speeds up to 8000+ MT/s. It features a robust 7+2+1 phase power supply system, core and memory boost technologies, and a 6-layer PCB with thickened copper for reliable performance. Enhanced cooling is ensured with Frozr Guard, extended heatsinks, thermal pads, and EZ M.2 Shield Frozr II. Connectivity options are excellent, with Wi-Fi 7 offering speeds up to 5.8Gbps, 2.5G LAN, and various USB ports, including 10Gbps Type-C and Type-A. It also includes two M.2 slots with RAID capabilities, four SATA 6G ports, and PCIe 4.0 support for graphics cards and storage. The motherboard's audio is powered by Realtek ALC897, providing a 7.1-channel immersive experience. It supports 4K resolutions via onboard HDMI 2.1 and DisplayPort 1.4.EZ PCIe and M.2 Clips simplify upgrades and installation, while addressable V2 RGB LED and RGB LED connectors offer customizable lighting options. The ATX form factor is designed for Windows 11 64-bit PCs, providing ample space and compatibility for complex configurations. The MSI B840 Gaming Plus WiFi motherboard combines outstanding performance, connectivity, and advanced security features like TPM 2.0 compatibility, making it an excellent choice for building a high-end gaming or productivity setup.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | B840 GAMING PLUS WIFI |
|
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | AMD B840 |
|
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
|
| Maximum Memory | 256GB | |
| Audio | ||
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | PCI 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor) |
|
| Storage | ||
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices 4x SATA 6G M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor) |
|
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek® 8125BG 2.5G LAN |
|
| Wireless Module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
|
| Bluetooth | Supports Bluetooth 5.4**, MLO, 4KQAM | |
| Ports & Connectors | ||

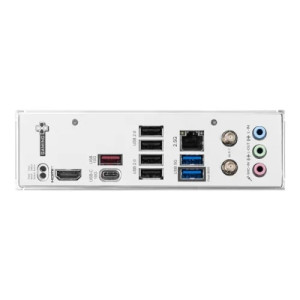

| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Warranty | ||
| Warranty | 3 years | |
