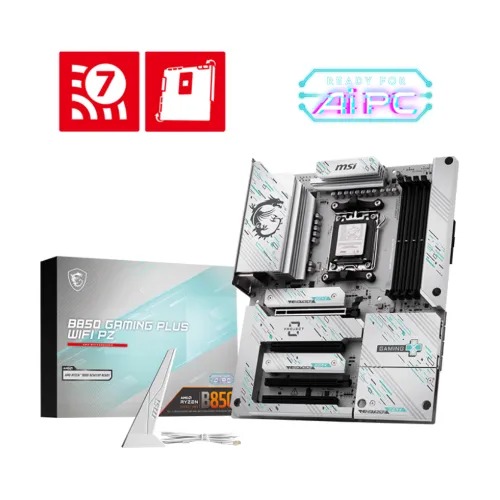

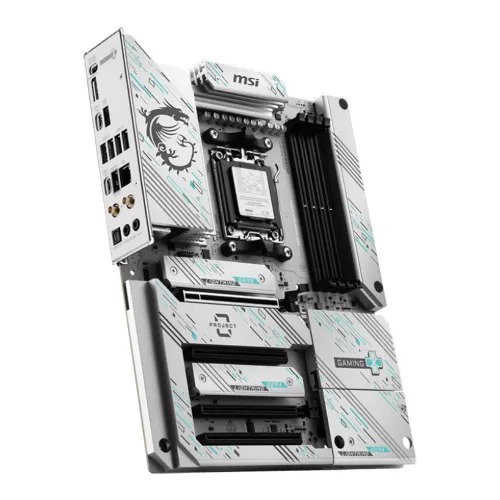

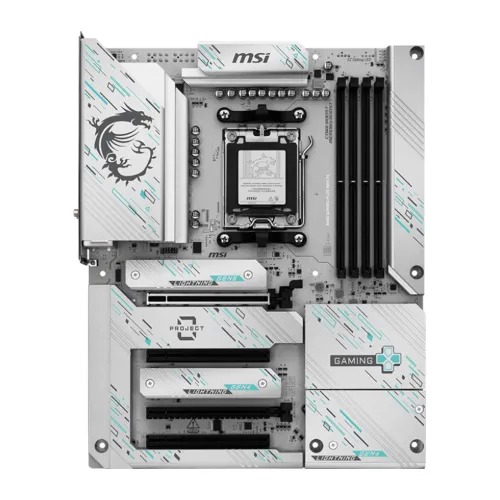

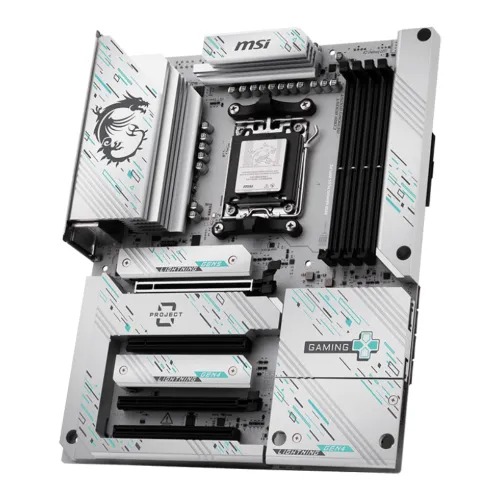

MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard
Key Features
- Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series Processors
- Supported RAM: 4x DDR5, 8200+MT/s (OC), Max 256GB
- Graphics Output: 1x DisplayPort
- Features: Realtek 8126VB 5G LAN, Wi-Fi 7 Solution
33,700 ৳
Description
MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard
The MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard is a strong and complete choice for gamers, creators, and power users who want cutting-edge technology and next-generation performance. The MSI B850 GAMING PLUS WIFI PZ Motherboard is built on the AMD Socket AM5 platform and supports the most recent AMD Ryzen 9000, 8000, and 7000 Series desktop CPUs, delivering excellent processing power for gaming, multitasking, and content creation. The MSI B850 GAMING PLUS WIFI PZ AM5 Motherboard has four DDR5 UDIMM slots that can hold up to 256GB of RAM and reach speeds of up to 8200 MT/s (OC), delivering lightning-fast responsiveness and outstanding memory performance. The AMD B850 chipset provides smooth system stability, robust overclocking capabilities, and compatibility with AMD EXPO technology for simple memory optimization. This motherboard has four PCIe x16 expansion slots, one of which is a PCIe 5.0 x16 slot for high-end graphics cards, assuring future-ready gaming and creative performance. Storage choices are plentiful, with three M.2 slots (up to PCIe 5.0 x4) and four SATA 6G connectors that enable RAID 0, 1, and 10 for SATA and RAID 0, 1, and 5 for NVMe SSDs, assuring lightning-fast data transmission and dependability. The MSI B850 GAMING PLUS WIFI PZ also has next-generation connection, including Realtek 8126VB 5G LAN, Wi-Fi 7, and Bluetooth 5.4, which provide high-speed networking and flawless wireless performance up to 5.8Gbps. It offers a variety of USB ports, including USB 10Gbps Type-A and Type-C, USB 5Gbps, and USB 2.0, allowing for varied communication with current devices. The DisplayPort 1.2 output supports 4K 60Hz resolution, and the Realtek ALC897 7.1-channel high-definition audio codec delivers immersive and crystal-clear sound for gaming and entertainment. The MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard is easy to build, configure, and update thanks to premium features like as a Flash BIOS Button, EZ Debug LED, various RGB headers (JARGB_V2 & JRGB), and a variety of internal I/O connections. The MSI B850 GAMING PLUS WIFI PZ Motherboard, with its rugged design, high-end connections, and cutting-edge performance, is an excellent choice for designing a future-proof gaming or professional PC.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | B850 GAMING PLUS WIFI PZ | |
| Supported CPU | ||
| CPU Type | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipsets | ||
| Chipset | AMD B850 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz |
|
| Audio | ||
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | PCI: 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) M.2 Socket: 3x M.2 |
|
| Storage | ||
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen 8500/8300 Series processors) |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices RAID 5 configuration is only supported by Ryzen 9000 Series Processors |
|
| Network | ||
| LAN | 1x Realtek 8126VB 5G LAN | |
| Wireless Module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
|
| Bluetooth | Supports Bluetooth 5.4, MLO, 4KQAM | |
| BIOS | ||
| BIOS | Flash BIOS Button | |
| Ports & Connectors | ||

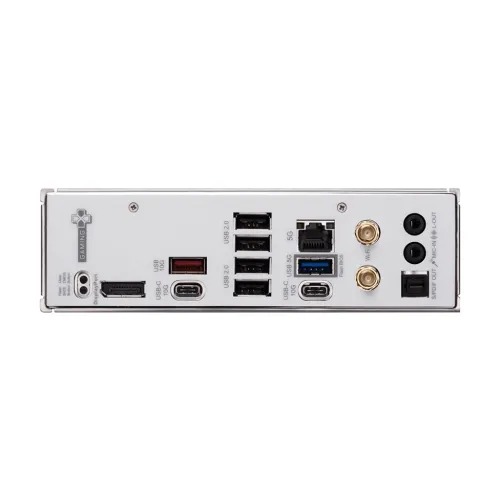

| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED | |
| Warranty | ||
| Warranty | 3 years | |
