MSI PRO B860-P DDR5 ATX Motherboard
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB 8800 - 6400 (OC) MT/s
- Graphics Output: 1x HDMI, 1x Type-C DisplayPort
- Features: 3x M.2, Realtek 5Gbps LAN
27,500 ৳
Description

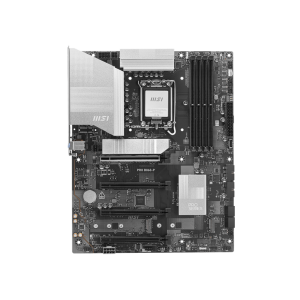

MSI PRO B860-P DDR5 Motherboard
The MSI PRO B860-P DDR5 Motherboard is engineered to maximize performance and reliability for Intel Core Ultra Processors (Series 2), leveraging the advanced INTEL B860 chipset. Featuring the LGA 1851 socket, it supports up to 256GB of DDR5 memory with speeds ranging from 8800 MT/s (overclocked) to 4800 MT/s (JEDEC), ensuring optimal multitasking and high-speed data processing. Its versatile connectivity includes HDMI™ 2.1, DisplayPort 1.4, and a Thunderbolt 4 port with DisplayPort 2.1 capabilities, delivering up to 8K resolution video output. The motherboard incorporates four PCI-E x16 slots, including PCIe 5.0 for superior graphics and expansion options, along with three M.2 slots for high-speed storage. It offers robust audio through the Realtek ALC897 Codec, enabling 7.1-Channel High Definition sound, and comprehensive RAID support for data protection and management. With multiple USB ports, Realtek 8126 5Gbps LAN for fast networking, and support for the latest Wi-Fi 7 and Bluetooth 5.4, the PRO B860-P ensures strong, stable connectivity. Additional features like EZ Debug LED, TPM 2.0 support, and compatibility with Windows 11 64-bit make this motherboard a versatile and powerful foundation for any build, perfectly fitting the ATX form factor.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | PRO B860-P | |
| Supported CPU | ||
| CPU Type | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
|
| Chipsets | ||
| Chipset | INTEL B860 |
|
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
|
| Audio | ||
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) |
|
| Storage | ||
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |
|
| Network | ||
| LAN | Realtek® 8126 5Gbps LAN |
|
| Ports & Connectors | ||
| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
|

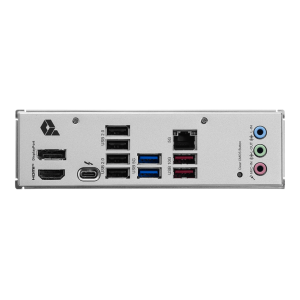

| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Bundled Software | Support for Windows 11 64-bit | |
| Unique Feature | 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
