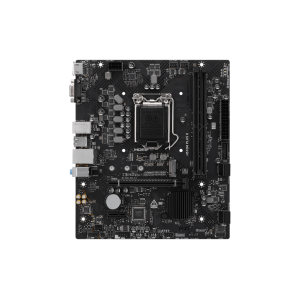

MSI H510M PLUS II DDR4 mATX Motherboard

More about this Item

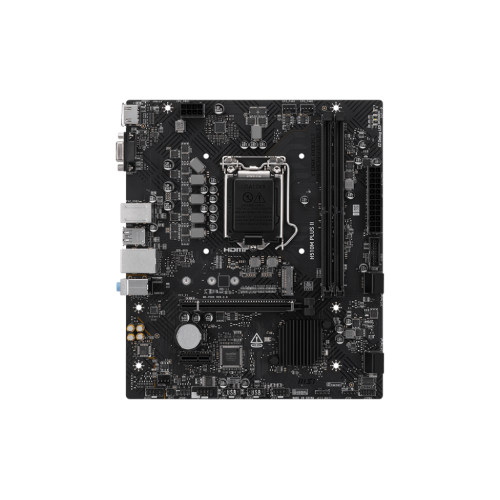

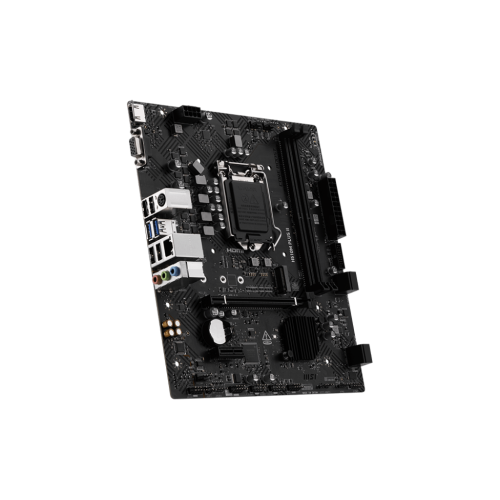

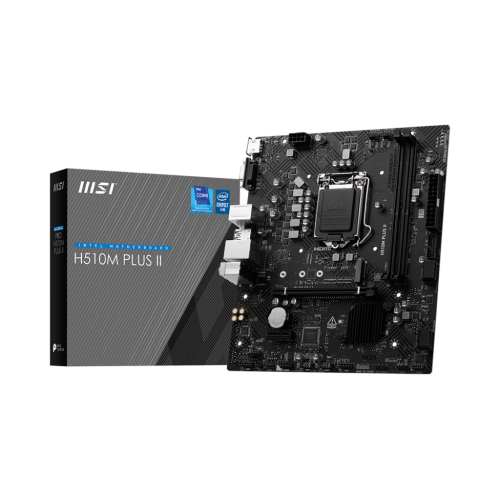

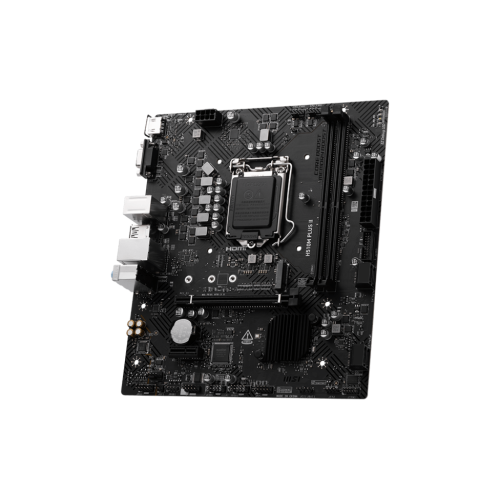

MSI H510M PLUS II DDR4 mATX Motherboard

MSI H510M PLUS II DDR4 mATX Motherboard

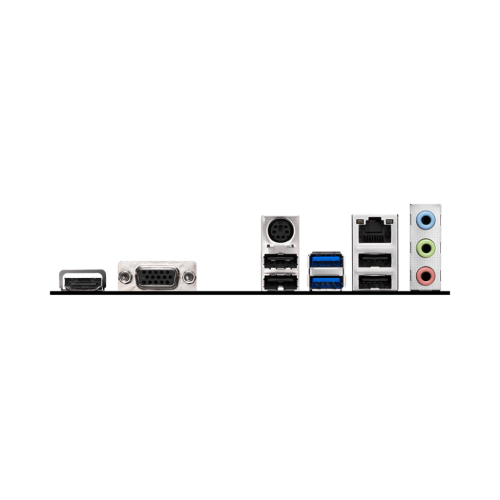

The MSI H510M PLUS II DDR4 mATX Motherboard is a reliable and performance-focused motherboard designed to support a wide range of Intel processors, including 10th and 11th Gen Intel Core, Pentium Gold, and Celeron CPUs. Built on the Intel H510 chipset, it offers a solid foundation for mainstream desktops, delivering efficient performance for both gaming and productivity. The board features two DDR4 memory slots, supporting up to 64GB of dual-channel RAM at speeds up to 2933 MHz, ensuring smooth multitasking and stable operation. For display connectivity, it includes 1x HDMI (4K at 30Hz) and 1x VGA port, allowing flexibility for both modern and legacy monitors. In terms of storage, the motherboard provides 1x M.2 slot (supporting PCIe 3.0 x4 / SATA mode for 2280/2260/2242 devices) and 4x SATA 6Gb/s ports, catering to both SSD and HDD users. Expansion capabilities include 1x PCI-E x16 slot and 1x PCI-E x1 slot, ideal for installing dedicated GPUs and additional add-on cards. The Realtek 8111H Gigabit LAN ensures fast and stable wired networking, while the Realtek ALC897 codec delivers immersive 7.1-channel high-definition audio. It also features multiple USB connectivity options, including four USB 2.0 ports (rear), four USB 2.0 (front), and four USB 5Gbps Type-A ports, offering plenty of flexibility for peripherals. With thoughtful details like EZ Debug LED indicators, RGB LED headers, and TPM 2.0 support, the MSI H510M PLUS II stands out as a dependable and feature-rich micro-ATX motherboard (202mm x 236mm) that strikes an excellent balance between functionality, compatibility, and value.
