MSI MAG A750GL PCIE5 750W 80 Plus Gold Power Supply
(0) Review
Key Features
- Type: Full Modular
- Fan Bearing: Fluid Dynamic Bearing
- Fan Size: 120 mm
- Efficiency: 80 PLUS Gold Certified
13,200 ৳
remove
add
Description

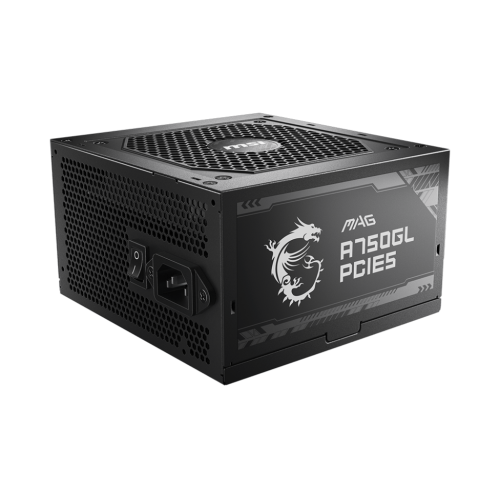

MSI MAG A750GL PCIE5 750W 80 Plus Gold Power Supply

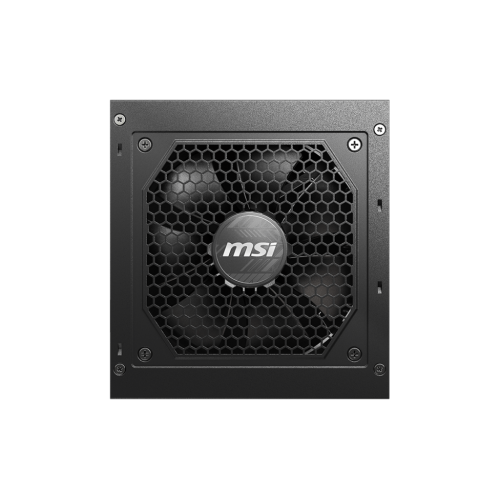

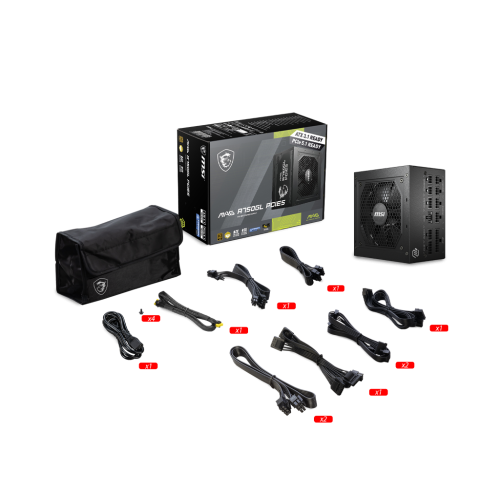

The MSI MAG SERIES A750GL PCIE5 is a high-performance, fully modular power supply designed for demanding gaming and computing systems. It boasts an 80 PLUS Gold certification, ensuring up to 90% energy efficiency and lower power consumption. This power supply supports ATX 3.1 and PCIe 5.1 standards, making it compatible with the latest graphics cards, including the NVIDIA GeForce RTX 40 Series. It features a 750W output capacity, a 120mm fluid dynamic bearing fan for quiet operation, and multiple protection mechanisms such as OCP, OVP, SCP, OPP, and OTP. The fully modular design simplifies cable management, reducing clutter and improving airflow within the case.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | A750GL | |
| Details | ||
| Maximum Power | 750W | |
| Fans | 120 mm | |
| Input Voltage | 100~240 VAC | |
| Frequency | 47-63Hz | |
| Output Power | 1500W (*up to 200% of the PSU's rated power for 100μs) | |
| Efficiency | 80 PLUS Gold (up to 90%) | |
| Dimension | 140 x 150 x 86 mm | |
| Others | Protection OCP / OVP / OPP / OTP / SCP / UVP |
|
| Connectors | ||
| Main Power | 1 x ATX (24 PIN) | |
| CPU | 2x EPS (4+4 pin) |
|
| PCI-E | 1x PCI-E 5.0 (16 pin) (450W) 3x PCI-E (6+2 pin) |
|
| SATA | 8x SATA (15 pin) |
|
| Molex | 4x Molex (4 pins) |
|
| Floppy | 1 x FDD (4 PIN) | |
| Warranty Information | ||
| Warranty | 5 years | |
