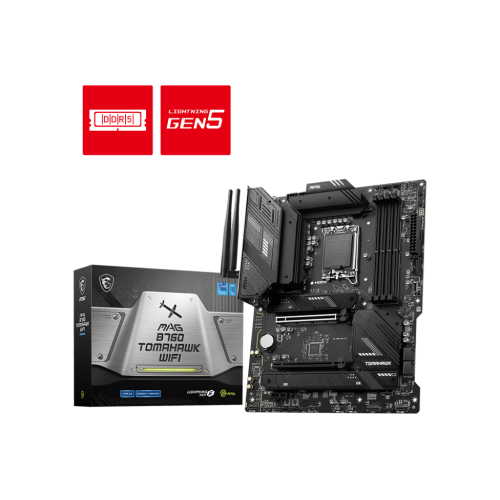

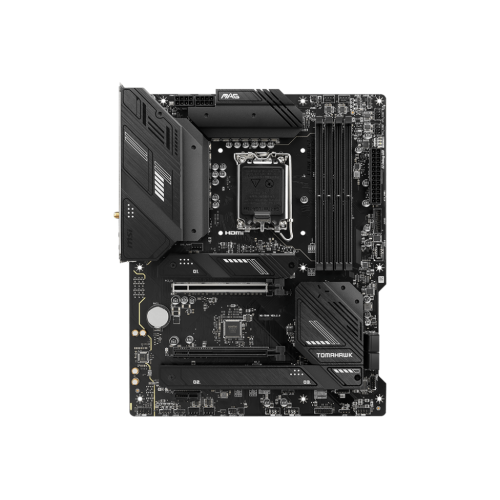

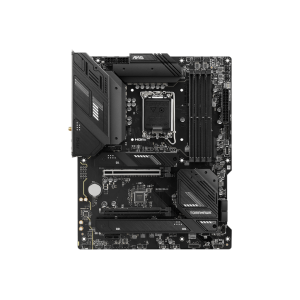

MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
Key Features
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 256GB 7000+(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 3x M.2 slot, Intel Wi-Fi 6E, Bluetooth 5.3
26,900 ৳
Description
MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
The MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard supports Intel Core 14th/13th/12th Gen Processors, Intel Pentium Gold, and Celeron Processors with an LGA 1700 socket. It features the Intel B760 chipset and supports DDR5 memory with four memory slots, capable of reaching overclocking speeds up to 7000+ MHz. The motherboard includes 1x HDMI and 1x DisplayPort for versatile display options, Realtek® ALC897 Codec for 7.1-Channel High Definition Audio, and multiple expansion slots including 2x PCI-E x16 and 1x PCI-E x1. It also offers three M.2 slots and four SATA 6G ports for extensive storage options, along with Realtek® 2.5Gbps LAN and Intel® Wi-Fi 6E for high-speed connectivity. The motherboard provides a variety of USB ports, including USB 2.0, USB 5Gbps, USB 10Gbps, and USB 20Gbps Type C ports, and supports RAID configurations for SATA storage devices. Additionally, it features addressable RGB LED connectors, TPM 2.0 support, and a robust cooling system with multiple fan connectors.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | MAG B760 TOMAHAWK WIFI | |
| Supported CPU | ||
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipsets | ||
| Chipset | INTEL B760 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, the maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Audio | ||
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| Storage | ||
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices | |
| Network | ||
| LAN | Realtek® 2.5Gbps LAN |
|
| Wireless Module | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
| Bluetooth | Supports Bluetooth® 5.3, FIPS, FISMA | |
| Ports & Connectors | ||

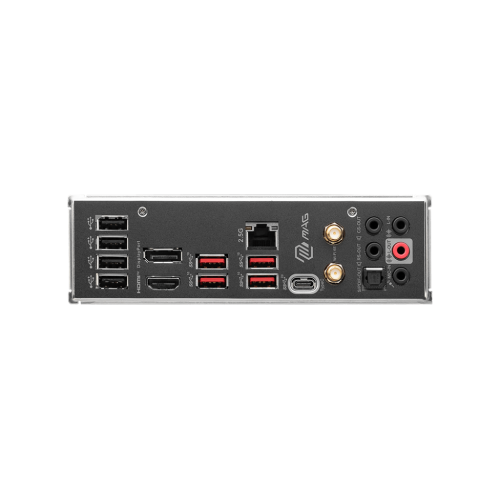

| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx243.84mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
