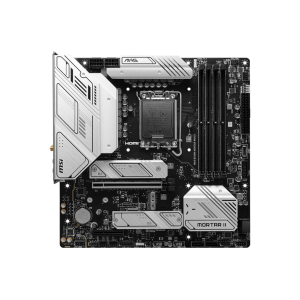

MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
Key Features
- Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
- Supported RAM: 4x DDR5, 7800+MHz (OC), Max 256GB
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 2.5Gbps LAN, Wi-Fi 6E
26,500 ৳
Description
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
The MSI MAG B760M MORTAR WIFI II Motherboard is an exceptional choice for gaming and content creation enthusiasts, supporting Intel Core 14th, 13th, and 12th Gen Processors, along with Intel Pentium Gold and Celeron Processors designed for the LGA 1700 socket. Featuring DDR5 compatibility, this motherboard embraces the future of memory technology, enabling impressive memory speeds of up to 7800+(OC) MHz for smooth multitasking and enhanced system responsiveness. The robust 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost collaborate to provide a stable and overclocking-friendly environment. With a PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2 x2, this motherboard caters to users seeking high data transfer speeds and compatibility with the latest gaming peripherals. The advanced thermal solution, featuring an expanded heatsink design and M.2 Shield Frozr, ensures optimal performance and reliability by maintaining proper temperatures during intense gaming sessions or resource-heavy tasks. Audio Boost technology further enhances the user experience by delivering studio-grade sound quality for gaming, music, and multimedia applications. The motherboard's premium construction is evident in its 6-layer PCB, crafted from 2oz thicker copper and server-grade material, which not only boosts the system's durability and stability but also extends its overall lifespan. In summary, the MSI MAG B760M MORTAR WIFI II Motherboard seamlessly blends cutting-edge technology with a focus on performance, reliability, and user-friendly features, making it an outstanding choice for those seeking a high-performance motherboard for their gaming or content creation setup.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | MAG B760M MORTAR WIFI II | |
| Supported CPU | ||
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipsets | ||
| Chipset | INTEL B760 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, the maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Audio | ||
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| Storage | ||
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices | |
| Network | ||
| LAN | Realtek® 2.5Gbps LAN |
|
| Wireless Module | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
| Bluetooth | Supports Bluetooth® 5.3, FIPS, FISMA | |
| Ports & Connectors | ||

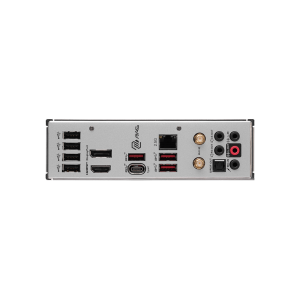

| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | mATX 243.84mmx243.84mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
