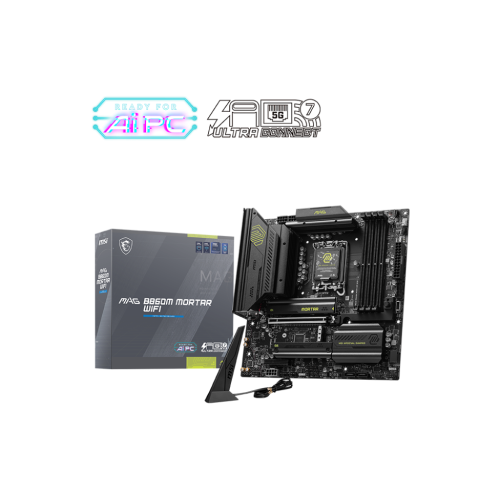

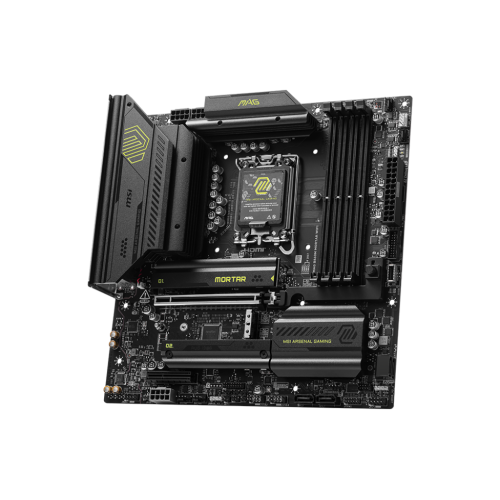

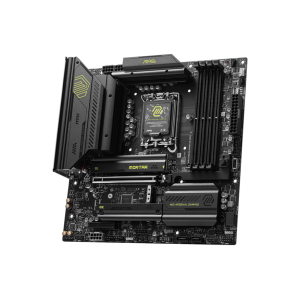

MSI MAG B860M MORTAR WIFI DDR5 mATX Motherboard
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB 9066 - 6400 (OC) MT/s
- Graphics Output: 1x HDMI, 1x Type-C DisplayPort
- Features: 3x M.2, Killer 5Gbps LAN, BE1750x Wi-Fi 7, Bluetooth 5.4
33,500 ৳
Description
MSI MAG B860M MORTAR WIFI Intel LGA 1851 mATX Motherboard
The MSI MAG B860M MORTAR WIFI DDR5 Gaming Motherboard based on the advanced INTEL B860 chipset, is designed to support Intel® Core™ Ultra Processors (Series 2) with its LGA 1851 socket, ensuring exceptional performance and stability. It can accommodate up to 256GB of DDR5 memory, with support for speeds ranging from 9066 MT/s (overclocked) to 4800 MT/s (JEDEC). This motherboard includes versatile connectivity options like HDMI™ 2.1, DisplayPort 1.4, and Thunderbolt™ 4, supporting ultra-high-resolution outputs up to 8K. It features one PCI-E x16 slot (Gen PCIe 5.0) and one PCI-E x4 slot (Gen PCIe 4.0), along with three M.2 slots for high-speed storage. The Realtek® ALC897 Codec provides 7.1-Channel High Definition Audio, supporting S/PDIF output. For extensive USB connectivity, it includes multiple USB 2.0, USB 5Gbps, and USB 10Gbps ports, alongside Intel® Killer™ E5000 5Gbps LAN for high-speed networking. Integrated Intel® Killer™ BE1750x Wi-Fi 7 and Bluetooth® 5.4 ensure robust wireless connections. Additional features like EZ Debug LED, TPM 2.0 support, and compatibility with Windows® 11 64-bit make the MAG B860M MORTAR WIFI motherboard a powerful and reliable choice for any high-performance build, fitting the mATX form factor (243.84mm x 243.84mm).
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | MAG B860M MORTAR WIFI | |
| Supported CPU | ||
| CPU Type | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
|
| Chipsets | ||
| Chipset | INTEL B860 |
|
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
|
| Audio | ||
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| Storage | ||
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |
|
| Network | ||
| LAN | Intel® Killer™ E5000 5Gbps LAN | |
| Wireless Module | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
|
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM | |
| Ports & Connectors | ||

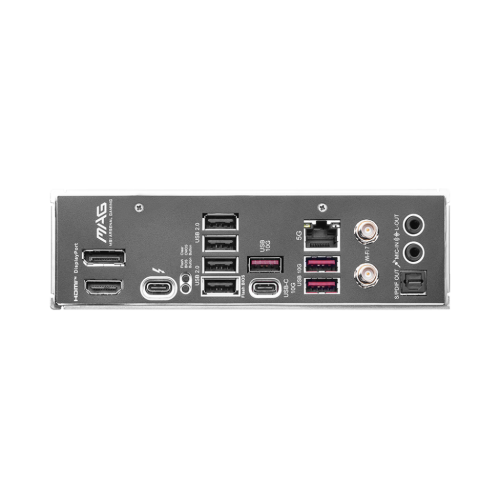

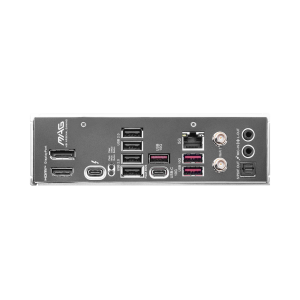

| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
|
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | mATX 243.84mmx304.8mm |
|
| Others | ||
| Bundled Software | Support for Windows 11 64-bit | |
| Unique Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 years | |
