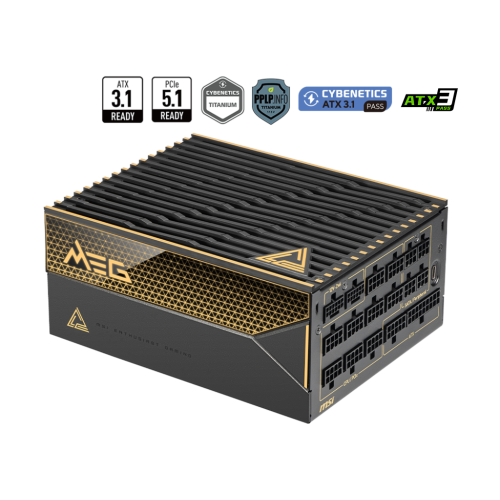

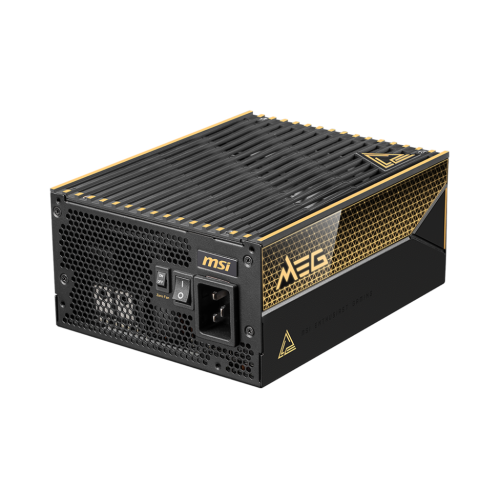

MSI MEG Ai1600T PCIE5 1600W 80 Plus Titanium Power Supply
0 Customer Review
Key Features

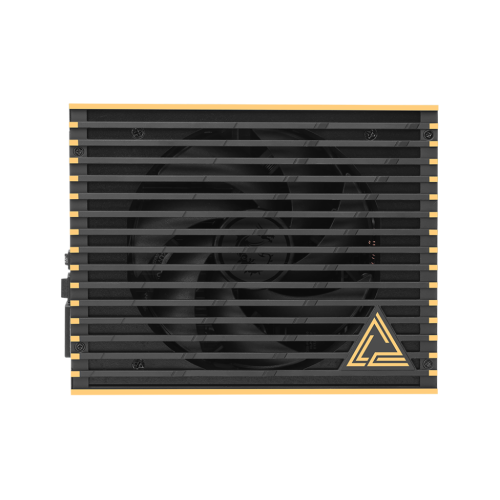

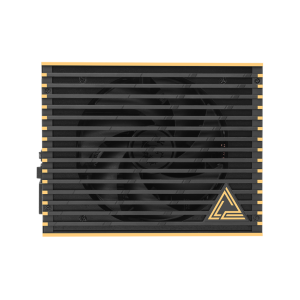

- Fan Size: 135 mm
- Efficiency Rating: 80 PLUS Titanium (up to 94%)
- Fan Bearing: Double Ball Bearing
- PFC Type: Interleaved PFC
production_quantity_limits
Up Coming
remove
add
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | MEG Ai1600T PCIE5 |
|
| Details | ||
| Maximum Power | 1600W | |
| Fans | 135 mm | |
| Input Voltage | 100~240 VAC | |
| Frequency | 50-60Hz | |
| Output Power | 3840W (*up to 240% of the PSU's rated power for 100μs) |
|
| Efficiency | 80 PLUS Titanium (up to 94%) |
|
| Dimension | 190 x 150 x 86 mm |
|
| Others | Protection OCP / OVP / OPP / OTP / SCP / UVP Fan Bearing Double Ball Bearing PFC Type Interleaved PFC Modular Yes (full modular) |
|

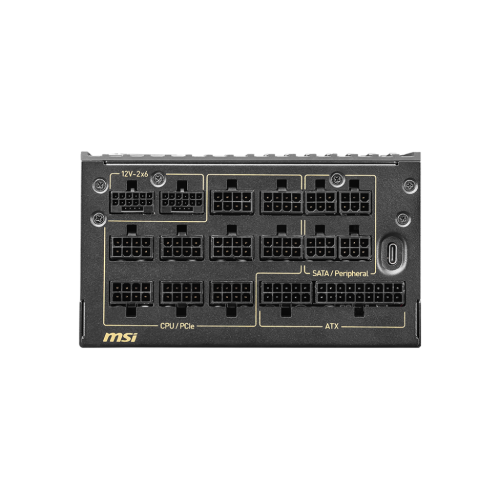

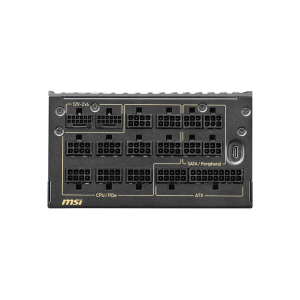

| Connectors | ||
| Main Power | 1 x ATX (24 PIN) | |
| CPU | 2x EPS (4+4 pin) |
|
| PCI-E | 2x PCI-E 5.0 (16 pin) (600W) 9x PCI-E (6+2 pin) |
|
| SATA | 8x SATA (15 pin) |
|
| Molex | 8x Molex (4 pins) |
|
| Floppy | 1 x FDD (4 PIN) | |
