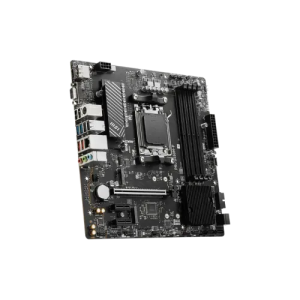

MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard
Key Features
- Supported CPU: Ryzen 9000/8000/7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 7200+(OC) MHz,256GB
- Graphics Output: 1x HDMI, 1x Display Port, 1x VGA
- Features: Realtek 8125BG 2.5G LAN
16,900 ৳
Description
MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard
The MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard is designed to offer cutting-edge performance for modern computing needs. Supporting AMD Ryzen 8000 and 7000 Series Desktop Processors and DDR5 memory, it ensures compatibility with the latest CPUs and provides rapid memory speeds of up to 7200+MHz when overclocked. With Core Boost and Memory Boost technologies, this motherboard delivers outstanding processing power, stability, and clean data signals. The 6-layer PCB, made from 2oz thickened copper, enhances durability and reliability. Gamers will appreciate the PCIe 4.0 slots and Lightning Gen 4 x4 M.2 slots, which offer ultra-fast data transfer speeds and support for high-end graphics cards. Professionals and multimedia users will benefit from the 2.5G LAN upgrade, ensuring a secure, stable, and fast network connection. Additionally, Audio Boost technology provides studio-grade sound quality for an immersive audio experience. The Steel Armor protects VGA cards from bending and electromagnetic interference (EMI). Overall, the MSI PRO B650M-P motherboard is a versatile and powerful platform, making it an ideal choice for gamers, content creators, and professionals seeking top-notch performance and functionality.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | B650M-P | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | AMD B650 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 DIMMs | |
| Supported Memory | Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | Support HDMITM 2.1, maximum resolution of 4K 60Hz* Supports DP 1.4, maximum resolution of 4K 60Hz* Support VGA, maximum resolution of 1920x1200 60Hz* |
|
| Audio | ||
| Audio | 1x Front Audio (JAUD) Back Audio connectors |
|
| Expansion Slots | ||
| Expansion Slots | PCI 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Storage | ||
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek 8125BG 2.5G LAN | |
| Ports & Connectors | ||
| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|
| Form Factor | ||
| Form Factor | mATX 243.84mmx243.84mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
