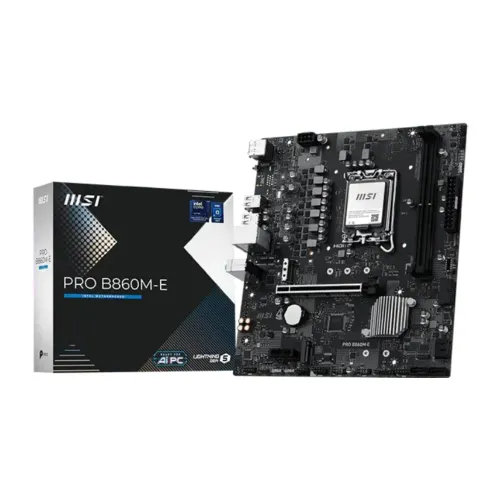

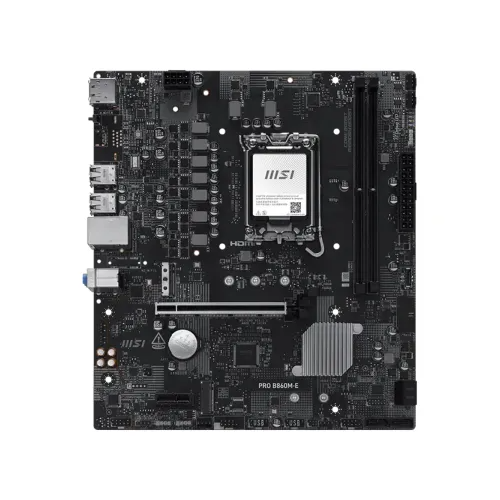

MSI PRO B860M-E LGA 1851 mATX Motherboard
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 2x DDR5 UDIMM, Up to 9066 (OC) MT/s, Max 128GB
- Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
- Features: 2x M.2, Realtek 8126 5Gbps LAN, 7.1-Channel Audio
18,900 ৳
Description
MSI PRO B860-P DDR5 Motherboard
The MSI PRO B860M-E LGA 1851 mATX Motherboard is engineered for Intel Core Ultra Processors (Series 2). Built on the INTEL B860 chipset, it delivers strong performance in a compact mATX form factor measuring 220mm x 243.84mm. With Realtek ALC897 Codec, users enjoy immersive 7.1-channel high-definition audio for gaming, streaming, and professional tasks. Expansion options include one PCI-E x16 slot supporting PCIe 5.0 from the CPU and one PCI-E x1 slot supporting PCIe 4.0 from the chipset. Dual M.2 sockets provide ultra-fast storage, with M.2_1 supporting PCIe 5.0 x4 devices and M.2_2 supporting PCIe 4.0 x4 devices. This ensures smooth multitasking and rapid data transfer speeds for demanding applications. Memory support is extensive, with DDR5 slots accommodating up to 128GB. Overclocking capabilities reach DDR5 9066+ MT/s, while Intel XMP 3.0 compatibility enhances tuning flexibility. Dual-channel architecture and support for non-ECC, un-buffered memory make this motherboard a strong choice for performance-focused builds. It balances speed, stability, and efficiency for modern computing needs. Connectivity includes HDMI 2.1, DisplayPort 1.4, multiple USB ports, and Realtek 8126 5Gbps LAN. Storage expansion is supported by 2x M.2 and 4x SATA 6G ports. Additional features include EZ Debug LEDs, RGB connectors, and TPM 2.0 support. The MSI PRO B860M-E is a smart solution for builders seeking reliable performance, advanced connectivity, and smooth system customization.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | PRO B860M-E | |
| Supported CPU | ||
| CPU Type | Intel Core Ultra Processors (Series 2) LGA 1851 |
|
| Chipsets | ||
| Chipset | INTEL B860 |
|
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 2x UDIMM | |
| Supported Memory | Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9066+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 1x DisplayPort 1.4 |
|
| Audio | ||
| Audio | 1x Front Audio (JAUD) | |
| Expansion Slots | ||
| Expansion Slots | PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
|
| Storage | ||
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| Network | ||
| LAN | Realtek 8126 5Gbps LAN | |
| Ports & Connectors | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | mATX 220mmx243.84mm |
|
| Others | ||
| Unique Feature | LED FEATURE: 4x EZ Debug LED, 1x EZ Memory Detection LED | |
| Warranty | ||
| Warranty | 3 years | |
