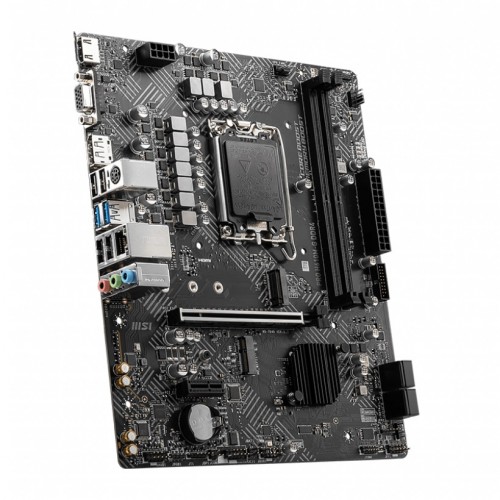

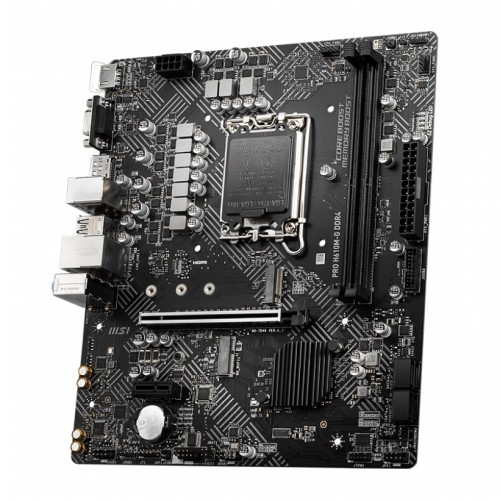

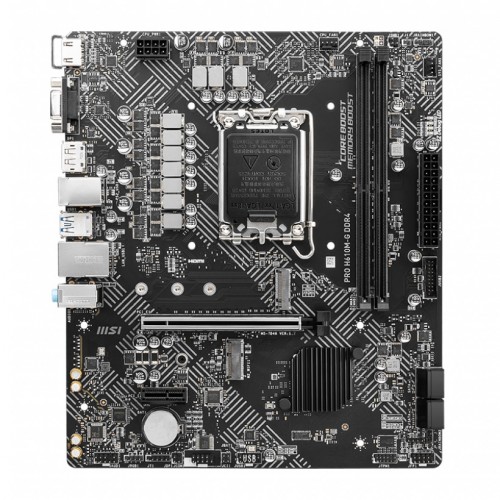

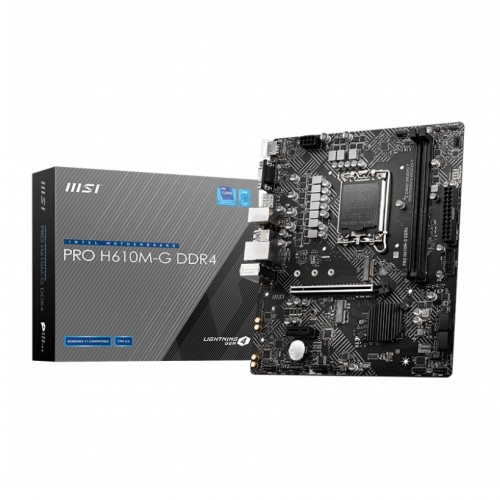

MSI PRO H610M-G DDR4 Micro-ATX Motherboard
Key Features
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Lightning Fast Experience: PCIe 4.0
- Core Boost, Memory Boost, Audio Boost
11,100 ৳
Description
MSI PRO H610M-G DDR4 Micro-ATX Motherboard
The MSI PRO H610M-G DDR4 Micro-ATX Motherboard is a reliable and efficient platform designed for users seeking stable performance and long-term compatibility. Built on the Intel H610 chipset, it supports Intel Core 14th, 13th, and 12th Gen processors, along with Pentium Gold and Celeron CPUs, using the LGA 1700 socket. This motherboard features two DDR4 memory slots, supporting up to 64GB of dual-channel memory with speeds reaching 3200 MHz. The Core Boost technology ensures optimized power delivery for enhanced performance, while Memory Boost provides stable and efficient data transfer.For graphics, the board includes HDMI 2.1, DisplayPort 1.4, and VGA ports, allowing flexible display options with resolutions up to 4K at 60Hz. Expansion options include one PCIe 4.0 x16 slot for high-speed graphics cards and one PCIe 3.0 x1 slot for additional expansion. Storage capabilities consist of one PCIe 3.0 x4 M.2 slot supporting NVMe and SATA SSDs, along with four SATA 6 Gbps ports for traditional storage drives. Networking is powered by Intel I219V 1 Gbps LAN, ensuring stable and fast wired connections. The Realtek ALC892/ALC897 audio codec delivers 7.1-channel high-definition sound, enhancing multimedia and gaming experiences. Connectivity options include USB 3.2 Gen 1 5 Gbps Type-A ports, USB 2.0 ports, and various internal headers for additional expansion. The EZ Debug LEDs assist in troubleshooting, making it user-friendly for DIY builders. Designed in a Micro-ATX form factor, the MSI PRO H610M-G DDR4 motherboard is compact yet powerful, fitting seamlessly into smaller PC builds while maintaining excellent functionality. It is an ideal choice for professionals and casual users looking for a dependable and efficient motherboard.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | H610M-G | |
| Supported CPU | ||
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipsets | ||
| Chipset | INTEL H610 | |
| Memory | ||
| Memory Type | DDR4 | |
| Number of Memory Slots | 2 | |
| Supported Memory | Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
|
| Audio | ||
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) |
|
| Storage | ||
| Storage | 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
|
| Network | ||
| LAN | 1x Intel I219V 1Gbps LAN controller | |
| Ports & Connectors | ||

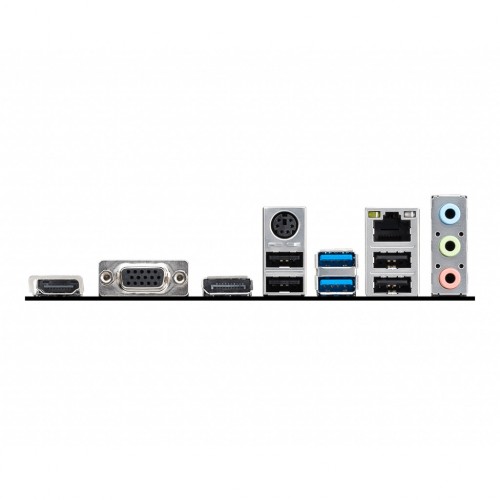

| USB Ports | 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
|
| Internal I/O Ports | POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector JUMPERS: 1x Clear CMOS jumper |
|
| Form Factor | ||
| Form Factor | mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors |
|
| Warranty | ||
| Warranty | 3 years | |
