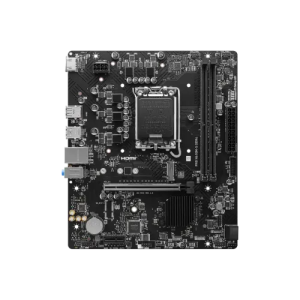

MSI PRO H610M-S DDR4 mATX Motherboard
0 Customer Review
Key Features
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR4, Max 64GB
- Graphics Output: 1x HDMI
- Features: 1x M.2 slot, Realtek Gigabit LAN
10,200 ৳
remove
add
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | PRO H610M-S DDR4 | |
| Supported CPU | ||
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipsets | ||
| Chipset | INTEL H610 | |
| Memory | ||
| Memory Type | DDR4 | |
| Number of Memory Slots | 2 | |
| Supported Memory | Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz |
|
| Audio | ||
| Audio | Audio Connectors |
|
| Expansion Slots | ||
| Expansion Slots | PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) M.2 Socket 1 x m.2 |
|
| Network | ||
| LAN | Realtek RTL8111H Gigabit LAN |
|
| Ports & Connectors | ||

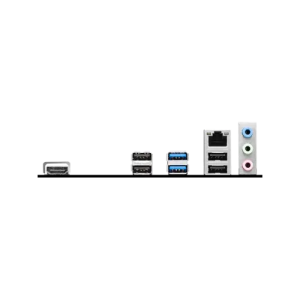

| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports |
|
| Form Factor | ||
| Form Factor | mATX 200mmx236.16mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
