MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
0 Customer Review
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA1851 socket
- Supported RAM: 2x DDR5, up to 128GB, 9066 (O.C)
- Graphics Output: 1x HDMI, 1 x DP
- Features: Realtek RTL8125D LAN
17,000 ৳
remove
add
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | H810M-B | |
| Supported CPU | ||
| CPU Type | Supports Intel Core Ultra Processors (Series 2) LGA 1851 |
|
| Chipsets | ||
| Chipset | INTEL H810 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 2x UDIMM | |
| Supported Memory | Memory Support DDR5 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400 MT/s • 1DPC 2R Max speed up to 6400 MT/s Supports Intel POR Speed and JEDEC Speed Supports Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
|
| Storage | ||
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| Network | ||
| LAN | Realtek 8125 2.5Gbps LAN | |
| Ports & Connectors | ||

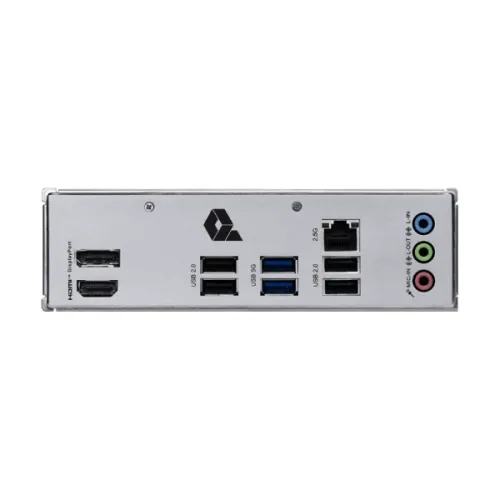

| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | mATX 220mmx243.84mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 years | |
