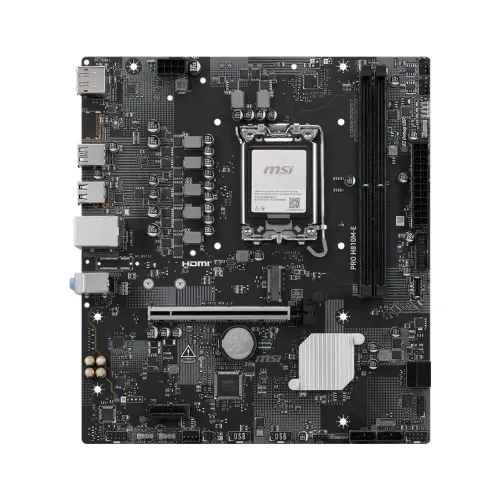

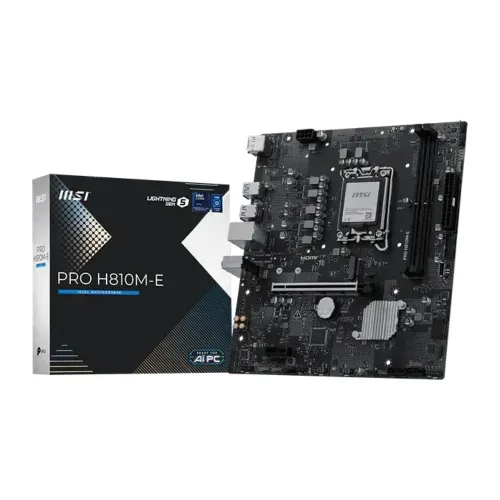

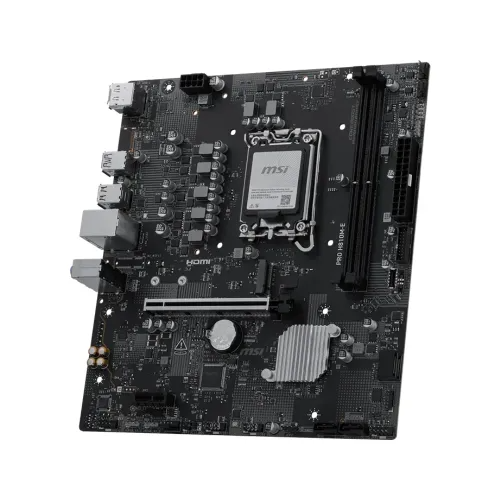

MSI PRO H810M-E DDR5 LGA1851 mATX Motherboard
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA1851 socket
- Supported RAM: 2x DDR5, up to 128GB, 6400 MT/s
- Graphics Output: 1x HDMI, 1 x DP
- Features: Realtek 8125D 2.5Gbps LAN
14,000 ৳
Description
MSI PRO H810M-E DDR5 LGA1851 mATX Motherboard
The MSI PRO H810M-E DDR5 LGA1851 mATX Motherboard is engineered to deliver stability, speed, and efficiency for modern PC builds. Powered by the Intel H810 chipset, it supports the latest Intel Core Ultra Processors (Series 2) on the LGA1851 socket, ensuring compatibility with next-generation computing performance. With 2x DDR5 UDIMM slots, users can install up to 128GB of memory running at speeds of 6400 MT/s, making this board ideal for multitasking, gaming, and productivity workloads. For graphics, the motherboard provides HDMI 2.1 and DisplayPort 1.4 outputs, both capable of 4K resolution at 60Hz when paired with CPUs featuring integrated graphics. Expansion options include a PCIe 5.0 x16 slot for high-performance GPUs, a PCIe 4.0 x1 slot, and a PCIe 4.0 M.2 socket supporting NVMe SSDs up to 2280 size, alongside 4x SATA 6Gbps ports for traditional storage. Networking is enhanced with Realtek 8125D 2.5Gbps LAN, ensuring fast and reliable connectivity. Audio performance is powered by the Realtek ALC897 codec, delivering 7.1-channel high-definition sound for immersive experiences. The board also integrates Flash BIOS Button for easy updates, EZ Debug LEDs for troubleshooting, and TPM 2.0 support for enhanced system security. Connectivity is versatile, with multiple USB 2.0, USB 5Gbps Type-A, and USB Type-C ports available on both front and rear panels, ensuring seamless integration with modern peripherals. Compact yet powerful, the Micro-ATX form factor makes it suitable for space-conscious builds without compromising on features. Whether you’re building a gaming rig, a productivity workstation, or a reliable everyday PC, the MSI PRO H810M-E DDR5 motherboard offers the perfect balance of performance, connectivity, and durability.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | H810M-E | |
| Supported CPU | ||
| CPU Type | Supports Intel Core Ultra Processors (Series 2) LGA 1851 |
|
| Chipsets | ||
| Chipset | INTEL H810 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 2 x UDIMM | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) |
|
| Storage | ||
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| Network | ||
| LAN | Realtek 8125D 2.5Gbps LAN | |
| Ports & Connectors | ||

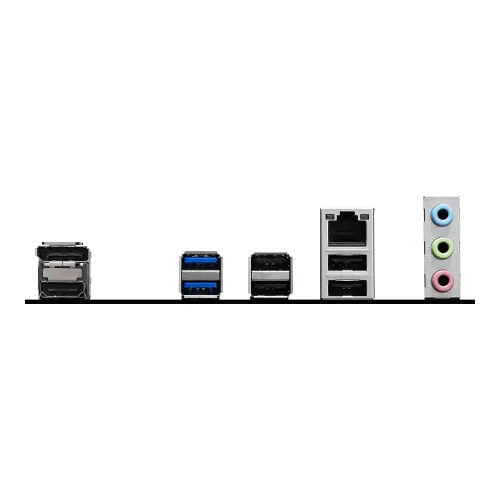

| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | Micro-ATX | |
| Others | ||
| Unique Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 years | |
