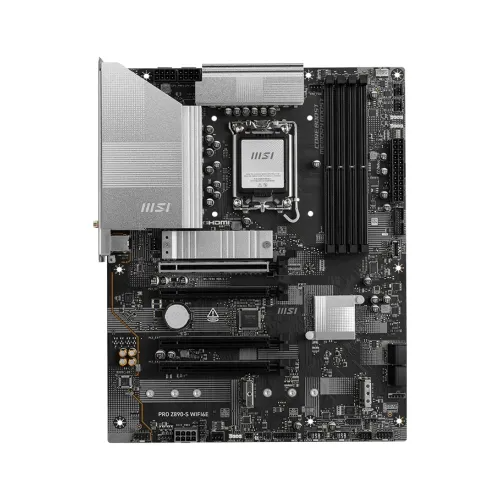

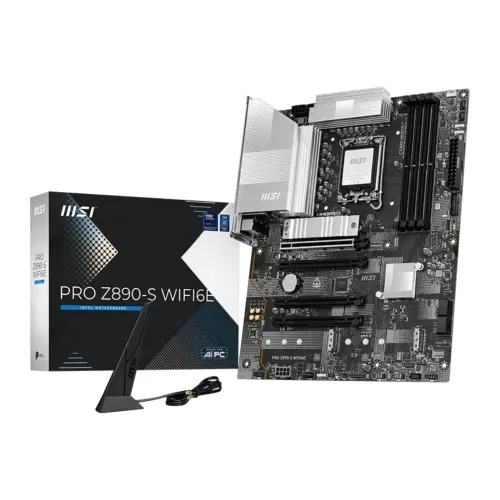

MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5 UDIMM, Up to 8800 (OC) MT/s, Max 256GB
- Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
- Features: 3x M.2, Realtek 8125D 5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3
33,200 ৳
Description
MSI PRO Z890-S WIFI DDR5 ATX Motherboard
The MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard is engineered for Intel Core Ultra Processors (Series 2). Built on the INTEL Z890 chipset, it delivers outstanding performance with DDR5 memory support up to 256GB. Its ATX form factor ensures compatibility with modern builds, while advanced audio powered by Realtek ALC897 Codec provides immersive 7.1-channel sound for gaming and multimedia experiences. Connectivity is a highlight, with multiple USB options including USB 20Gbps Type-C ports, HDMI 2.1, and DisplayPort 1.4. The motherboard integrates Wi-Fi 6E and Realtek 8125D 2.5Gbps LAN, offering smooth networking for streaming, gaming, and productivity. Bluetooth 5.3 support further enhances wireless communication, ensuring seamless device pairing and fast data transfer. Expansion flexibility is strong, featuring four PCI-E slots with PCIe 5.0, 4.0, and 3.0 support. Storage options include three M.2 sockets and four SATA 6G ports, with RAID support for both SATA and NVMe devices. This design empowers users to build high-speed storage arrays, boosting system responsiveness and reliability. The inclusion of EZ Debug LED simplifies troubleshooting, making system management straightforward. The MSI PRO Z890-S WIFI6E balances power, stability, and advanced features for builders seeking a strong foundation. With support for Intel XMP 3.0, memory overclocking, and dual-channel architecture, it ensures smooth multitasking and gaming. This motherboard is crafted for performance-driven users who want a robust platform for modern computing needs.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | PRO Z890-S WIFI | |
| Supported CPU | ||
| CPU Type | Intel Core Ultra Processors (Series 2) LGA 1851 |
|
| Chipsets | ||
| Chipset | INTEL Z890 |
|
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 1x DisplayPort 1.4 |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | PCI 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) M.2 Socket 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
| Storage | ||
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek 8125D 2.5Gbps LAN |
|
| Wireless Module | Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Bluetooth | Supports Bluetooth 5.3, FIPS, FISMA | |
| Ports & Connectors | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Bundled Software | Support for Windows 11 64-bit | |
| Unique Feature | 4x EZ Debug LED | |
| Warranty | ||
| Warranty | 3 years | |
