MSI B650M GAMING WIFI AM5 mATX Motherboard
Key Features
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, up to 7800+(OC) MHz,128GB
- Graphics Output: 1x HDMI, 1x Display Port
- Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E
19,300 ৳
Description
MSI B650M GAMING WIFI AM5 mATX Motherboard
The MSI B650M GAMING WIFI AM5 mATX Motherboard is engineered to elevate your gaming setup to new heights. Featuring 1x HDMI and 1x Display Port, it provides seamless connectivity to your display devices, delivering stunning visuals and an immersive gaming experience. With Bluetooth 5.3 and AMD Wi-Fi 6E support, alongside compatibility with AMD Ryzen 8000 and 7000 Series Desktop Processors, this motherboard offers exceptional connectivity and processing power. Its support for DDR5 memory, reaching speeds up to 7800+ MHz (OC), ensures top-tier performance, while Core Boost and Memory Boost technologies enhance stability and compatibility. The Lightning Gen4 M.2 support and PCIe 4.0 slots provide ultra-fast data transfer speeds, and Steel Armor reinforcement protects VGA cards from bending and electromagnetic interference. AUDIO BOOST technology delivers studio-grade sound quality, and the high-quality 6-layer PCB made from 2oz thickened copper guarantees superior durability and heat dissipation. Combining advanced features, robust construction, and unrivaled performance, the MSI B650M GAMING WIFI AM5 mATX Motherboard is the ultimate gaming platform for enthusiasts and gamers.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | B650M GAMING WIFI | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | AMD B650 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 2 | |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, the maximum resolution of 4K 60Hz* |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | PCI 1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) M.2 Socket 2x M.2 |
|
| Storage | ||
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek RTL8125BG 2.5Gbps LAN |
|
| Wireless Module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
| Bluetooth | Supports Bluetooth 5.3 | |
| Ports & Connectors | ||
| USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) |
|
| Internal I/O Ports | INTERNAL IO 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports |
|

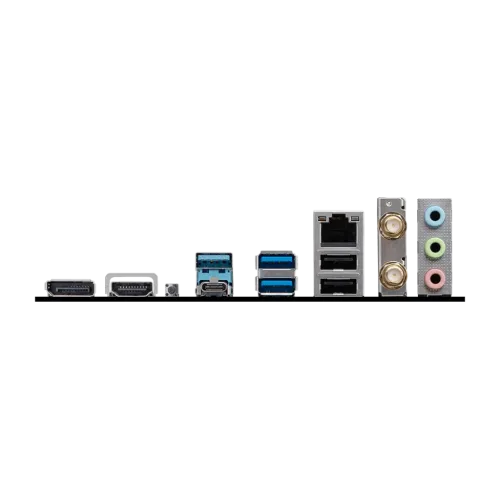

| Rear Panel I/O Ports | BACK PANEL PORTS DisplayPort HDMI USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 |
|
| Form Factor | ||
| Form Factor | mATX 226mmx243.84mm |
|
| Warranty | ||
| Warranty | 3 years | |
