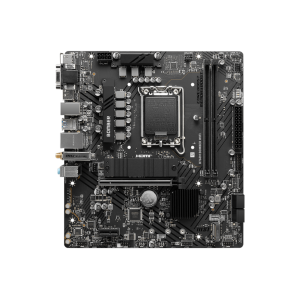

MSI B760M BOMBER WIFI DDR5 mATX Motherboard
Key Features
- Supported CPU: 14th/ 13th/13th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR5, Max 128GB 6400+MHz (OC)
- Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub
- Features: 2x M.2 slot, 2.5G LAN with Wi-Fi 6E
19,500 ৳
Description
MSI B760M BOMBER WIFI mATX Motherboard
The MSI B760M BOMBER WIFI mATX Motherboard is a high-performance option tailored for gaming enthusiasts. It supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors compatible with the LGA 1700 socket, ensuring broad processor compatibility. This motherboard supports DDR5 memory in a dual-channel configuration, enabling fast and efficient data transfer speeds of up to 6400+ MHz (OC). With an enhanced power design featuring a 12+1 Duet Rail Power System, P-PAK, and 8-pin + 4-pin CPU power connectors, it ensures stable power delivery and optimal performance. Core Boost and Memory Boost technologies further enhance performance. To improve thermals, the motherboard includes an extended heatsink and MOSFET thermal pads rated for 7W/mK, ensuring effective heat dissipation. Additional choke thermal pads provide support for high-performance systems, ensuring a reliable gaming experience. The MSI B760M BOMBER WIFI offers lightning-fast gaming experiences with a PCIe 4.0 slot, Lightning Gen 4 x4 M.2 slot with M.2 Shield Frozr, and Turbo USB 3.2 Gen 2 10G for high-speed data transfer. It also features a 2.5G LAN with Wi-Fi 6E for upgraded network connectivity suitable for professional and multimedia use . Constructed with a high-quality 6-layer PCB using 2oz thickened copper, this motherboard is designed for improved durability and performance. Additionally, the MSI B760M BOMBER WIFI Motherboard includes Audio Boost technology, delivering studio-grade sound quality for an immersive gaming experience.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | B760M BOMBER WIFI | |
| Supported CPU | ||
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipsets | ||
| Chipset | INTEL B760 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 2 | |
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, the maximum resolution of 4K 60Hz* 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Audio | ||
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| Storage | ||
| Storage | 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
|
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices | |
| Network | ||
| LAN | Realtek® RTL8125B 2.5Gbps LAN |
|
| Wireless Module | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
| Bluetooth | Supports Bluetooth® 5.3, FIPS, FISMA | |
| Ports & Connectors | ||

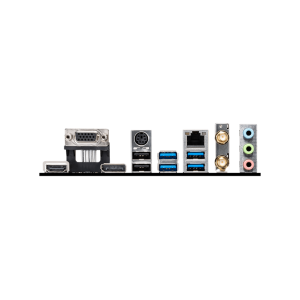

| USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | mATX 220mmx243.84mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
